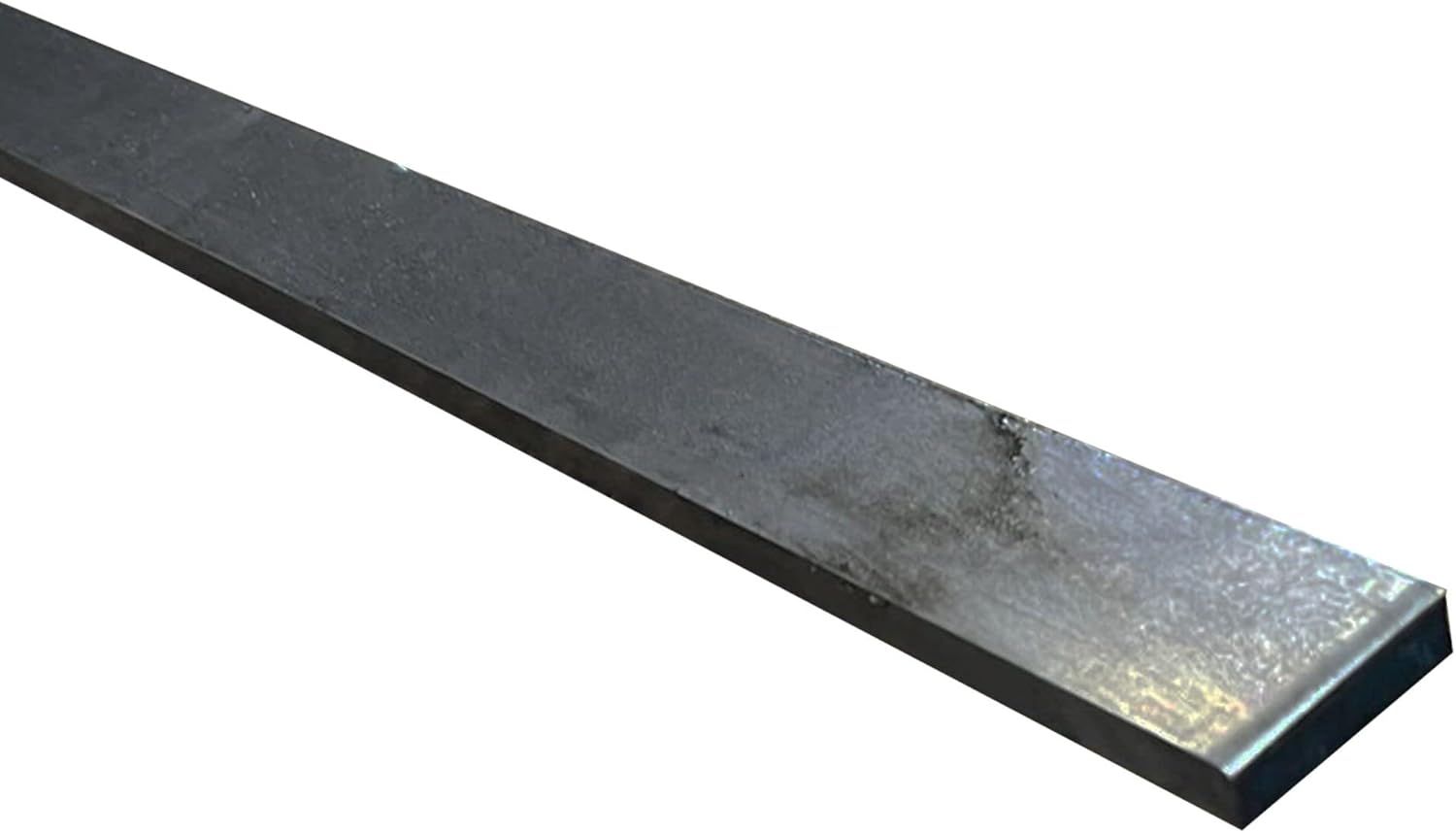

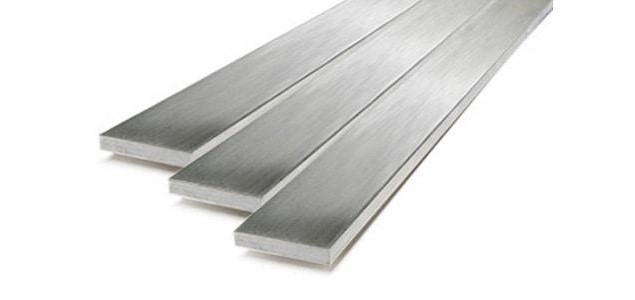

Flat Bars
Flat Bars
Flat Bars
Flat Bars
Flat Bars
Flat Bars
| FB | Dimensiones (mm.) | section(cm²) | Weight(Kg/m) | |
| H | T | |||
| 20X5 | 20 | 5 | 0.1 | 0.786 |
| 20X10 | 20 | 10 | 10,3 | 1.572 |
| 25X5 | 25 | 5 | 13,2 | 0.9825 |
| 25X10 | 25 | 10 | 16,4 | 1.965 |
| 30X5 | 30 | 5 | 20,1 | 1.179 |
| 30X10 | 30 | 10 | 23,9 | 2.358 |
| 40X5 | 40 | 5 | 28,5 | 1.572 |
| 40X10 | 40 | 10 | 33,4 | 3.144 |
| 50X5 | 50 | 5 | 39,1 | 1.965 |
| 50X10 | 50 | 10 | 45,9 | 3.93 |
| 50X12 | 50 | 12 | 53,8 | 4.716 |
| 60X6 | 60 | 6 | 62,6 | 2.8296 |
| 60X10 | 60 | 10 | 71,7 | 4.716 |
| 60X12 | 60 | 12 | 84,5 | 5.6592 |
| 70X10 | 70 | 10 | 98,8 | 5.502 |
| 80X10 | 80 | 10 | 116 | 6.288 |
| 80X12 | 80 | 12 | 134 | 7.5456 |
| 100X10 | 100 | 10 | 156 | 7.86 |
| 100x15 | 100 | 15 | 1.5 | 11.79 |
| 12x12 | 12 | 12 | 10,3 | 1.13184 |
| 14x14 | 14 | 14 | 13,2 | 1.54056 |
| 16x16 | 16 | 16 | 16,4 | 2.01216 |
| 20x20 | 20 | 20 | 20,1 | 3.144 |
| 25x25 | 25 | 25 | 23,9 | 4.9125 |
| 30x30 | 30 | 30 | 28,5 | 7.074 |
| 40x40 | 40 | 40 | 33,4 | 12.576 |
| 50x50 | 50 | 50 | 39,1 | 19.65 |
